Ningbo Yongning Hydraulics Co.,Ltd.
|
METRIC FEMALE 24°CONE HYDRAULIC TUBE FITTING HOSE FITTING
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Delivery: Depend on order quantity
Function:Convey Fluid
Certificate:ISO 9001:2000
Standard or specification:As per drawings or samples
Product name:20593-W/20593-T 90°METRIC FEMALE 24°CONE O-RING H.T. HYDRAULIC TUBE FITTING HOSE FITTING PIPE FITTING
Feature

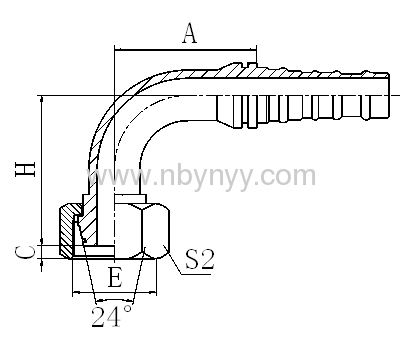

| E | HOSE BORE | O | DIMENSIONS | ||||||||
| PART NO. | THREAD E | DN | DASH | TUBE O.D. | O RING | A | C | H | S2 | ||
| 20593-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 74.5 | 3.2 | 67.8 | 46 | 46 | |
| 20593-36-16W | M36X2 | 25 | 16 | 25 | O20.3X2.4 | 88.9 | 3.2 | 79.5 | 46 | ||
| 20593-42-16W | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 88.9 | 5 | 80.5 | 50 | 55 | |
| 20593-42-20W | M42X2 | 32 | 20 | 30 | O25.3X2.4 | 105.8 | 5 | 91.5 | 50 | ||
| 20593-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 105.8 | 6.5 | 86.5 | 60 | 60 | |
