METRIC FEMALE 24° MULTISEAL HYDRAULIC HOSE FITTING PIPE
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Function:Convey Fluid
Materials:Iron ,carbon steel ,stainless steel, others specific metals
Certificate:ISO 9001:2000
Market: Mid-High quality

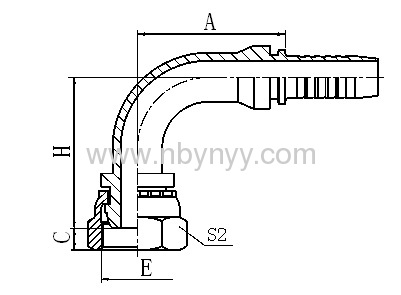

Product name:20491C/20491C-T 90° METRIC FEMALE 24° MULTISEAL L.T.DIN 3868 HYDRAULIC HOSE FITTING PIPE FITTING COUPLING
Feature
| E | HOSE BORE | DIMENSIONS | |||||||
| PART NO. | THREAD E | DN | DASH | TUBE O.D. | A | C | H | S2 | |
| 20491C-14-04 | M14X1.5 | 6 | 04 | 8 | 30 | 3.5 | 39.5 | 19 | |
| 20491C-16-04 | M16X1.5 | 6 | 04 | 10 | 30 | 3.5 | 40 | 22 | |
| 20491C-16-05 | M16X1.5 | 8 | 05 | 10 | 33 | 3.5 | 43 | 22 | |
| 20491C-16-06 | M16X1.5 | 10 | 06 | 10 | 35.25 | 3.5 | 45.2 | 22 | |
| 20491C-18-06 | M18X1.5 | 10 | 06 | 12 | 35.25 | 3 | 47.25 | 24 | |
| 20491C-22-08 | M22X1.5 | 12 | 08 | 15 | 41 | 4.5 | 53 | 27 | |
| 20491C-26-10 | M26X1.5 | 16 | 10 | 18 | 56.5 | 4 | 60 | 32 | |
| 20491C-30-12 | M30X2 | 20 | 12 | 22 | 65.5 | 7 | 68.5 | 36 | |
| 20491C-36-12T | M36X2 | 20 | 12 | 28 | 65.5 | 6.5 | 67.5 | 41 | |
