ORFS /METIRC MALE ADJUSTABLE S-SERIES BRANCH TEE ADAPTER
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to Basket | Add to My Favorites |
| HiSupplier Escrow |
Product Detail
Application area: mine,construciton,tunnel,paper-making,injection,and so on.
Standard or specification:As per drawings or samples
Product name:AFHF-OG ORFS MALE/METIRC MALE ADJUSTABLE STUD END S-SERIES ISO6149-2 BRANCH TEE HYDRAULIC ADAPTER FITTING ELBOW PIPE
Feature

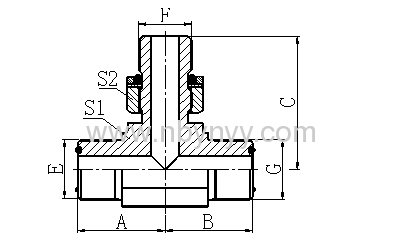

| THREAD | O O-RING | DIMENSIONS | ||||||||||
| PART NO. | E | F | G | E | F | G | A | B | C | S1 | S2 | |
| AFHF-04-14-04OG | 9/16"X18 | M14X1.5 | 9/16"X18 | O011 | O11.3X2.4 | O011 | 23 | 33.5 | 23 | 14 | 19 | |
| AFHF-06-16-06OG | 11/16"X16 | M16X1.5 | 11/16"X16 | O012 | O13.3X2.4 | O012 | 27 | 38 | 27 | 19 | 22 | |
| AFHF-08-22-08OG | 13/16"X16 | M22X1.5 | 13/16"X16 | O014 | O19.3X2.4 | O014 | 31 | 44.5 | 31 | 22 | 27 | |
| AFHF-10-22-10OG | 1"X14 | M22X1.5 | 1"X14 | O016 | O19.3X2.4 | O016 | 36.5 | 48 | 36.5 | 27 | 27 | |
| AFHF-12-27-12OG | 1.3/16"X12 | M27X2 | 1.3/16"X12 | O018 | O23.5X3.0 | O018 | 40.5 | 50 | 40.5 | 30 | 32 | |
| AFHF-16-33-16OG | 1.7/16"X12 | M33X2 | 1.7/16"X12 | O021 | O29.5X3.0 | O021 | 44.5 | 58.5 | 44.5 | 36 | 41 | |
| Note: F end is fit for ISO 6149-1 port. |
