ORFS MALE/BSP MALE O-RING BRANCH TEE HYDRAULIC ADAPTER PIPE from China manufacturer

ORFS MALE/BSP MALE O-RING BRANCH TEE HYDRAULIC ADAPTER PIPE

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


Add to Basket	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: AFGF-OG

Packing: Carton , Pallet

Technics: Forged

Function: Convey Fluid

Materials: Iron ,carbon steel ,stainle...

Standard or specification: As per drawings or samples

Means of Transport: Ocean,Air

Delivery Date: By Order Quantity

Brand Name: YN

Certificate: ISO 9001:2000

Surface treatment: Cr+3, Cr+6 yellow zinc, col...

Price: With competitive price
Standard or specification:As per drawings or samples
Delivery: Depend on order quantity

Product name:AFGF-OG ORFS MALE O-RING / BSP MALE O-RING BRANCH TEE HYDRAULIC ADAPTER FITTING ELBOW PIPE FITTING

Feature

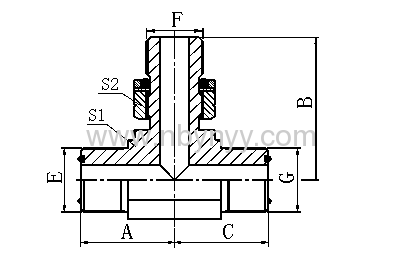

THREAD O O-RING DIMENSIONS
PART NO. E F G E F G A B C S1 S2
AFGF-04OG 9/16"X18 G1/4"X19 9/16"X18 O011 O111 O011 23 31.3 23 14 19
AFGF-04-06-04OG 9/16"X18 G3/8"X19 9/16"X18 O011 O113 O011 23.5 35.5 23.5 16 22
AFGF-06OG 11/16"X16 G3/8"X19 11/16"X16 O012 O113 O012 27.5 36.8 27.5 19 22
AFGF-08-06-08OG 13/16"X16 G3/8"X19 13/16"X16 O014 O113 O014 31 39.5 31 22 27
AFGF-08OG 13/16"X16 G1/2"X14 13/16"X16 O014 O115 O014 31 43.2 31 22 27
AFGF-10-12-10OG 1"X14 G3/4"X14 1"X14 O016 O119 O016 36.5 49.3 36.5 27 32
AFGF-12OG 1.3/16"X12 G3/4"X14 1.3/16"X12 O018 O119 O018 41.5 53.5 41.5 30 32
AFGF-16OG 1.7/16"X12 G1"X11 1.7/16"X12 O021 O217 O021 44.5 56 44.5 36 41

Note: F end is connected with DIN 3852 port.

We specialized in manufacture most of kinds of hydraulic fittings and other parts,you can go ahead to browse our website,ofcourse,you can contact us directly if interested.
