Ningbo Yongning Hydraulics Co.,Ltd.
|
JIS METRIC MALE HYDRAULIC ADAPTER FITTING ELBOW PIPE FITTING
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Payment: T/T,L/C
Delivery: Depend on order quantity
Surface treatment:Cr+3, Cr+6 yellow zinc, color zinc plated or white zinc plated
Product name:1KG JIS METRIC MALE 60° CONE / BSP MALE O-RING HYDRAULIC ADAPTER FITTING ELBOW PIPE FITTING
Feature

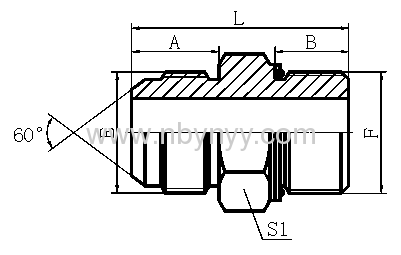

| THREAD | O O-RING | DIMENSIONS | |||||||||
| PART NO. | E | F | F | A | B | L | S1 | ||||
| 1KG-14-04 | M14X1.5 | G1/4"X19 | O111 | 17 | 11 | 36 | 19 | ||||
| 1KG-14-06 | M14X1.5 | G3/8"X19 | O113 | 17 | 11.5 | 36.5 | 22 | ||||
| 1KG-16-06 | M16X1.5 | G3/8"X19 | O113 | 18 | 11.5 | 38 | 22 | ||||
| 1KG-18-06 | M18X1.5 | G3/8"X19 | O113 | 18 | 11.5 | 38 | 22 | ||||
| 1KG-22-08 | M22X1.5 | G1/2"X14 | O115 | 20 | 14 | 47 | 27 | ||||
| 1KG-30-12 | M30X1.5 | G3/4"X14 | O119 | 26 | 15.5 | 52.5 | 32 | ||||
| 1KG-33-12 | M33X1.5 | G3/4"X14 | O119 | 30 | 15.5 | 59.5 | 36 | ||||
| 1KG-33-16 | M33X1.5 | G1"X11 | O217 | 30 | 18 | 62 | 41 | ||||
| Note: F end is connected with DIN 3852 port. |
