45° ELBOW ORFS MALE HYDRAULIC ADAPTER ELBOW PIPE

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 1FH4-OG

Packing: Carton , Pallet

Technics: Forged

Function: Convey Fluid

Materials: Iron ,carbon steel ,stainle...

Standard or specification: As per drawings or samples

Means of Transport: Ocean,Air

Delivery Date: By Order Quantity

Brand Name: YN

Certificate: ISO 9001:2000

Surface treatment: Cr+3, Cr+6 yellow zinc, col...

Price: With competitive price
Surface treatment:Cr+3, Cr+6 yellow zinc, color zinc plated or white zinc plated
Delivery:Depend on order quantity

Product name:1FH4-OG 45° ELBOW ORFS MALE O-RING / METIRC MALE ADJUSTABLE STUD END S-SERIES ISO6149-2 HYDRAULIC ADAPTER ELBOW PIPE

Feature

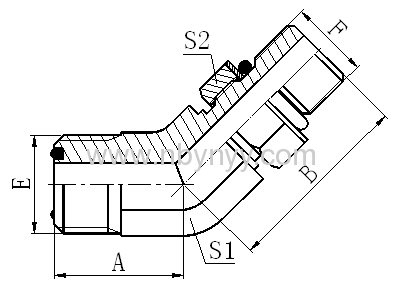

THREAD O O RING DIMENSIONS
PART NO. E F E F A B S1 S2
1FH4-04-14OG 9/16"X18 M14X1.5 O011 O11.3X2.4 18.3 29.5 14 19
1FH4-06-14OG 11/16"X16 M14X1.5 O012 O11.3X2.4 20.5 33 19 19
1FH4-06-16OG 11/16"X16 M16X1.5 O012 O13.3X2.4 20.5 33.5 19 22
1FH4-08-16OG 13/16"X16 M16X1.5 O014 O13.3X2.4 24 33.5 22 22
1FH4-08-18OG 13/16"X16 M18X1.5 O014 O15.3X2.4 24 36 22 24
1FH4-10-22OG 1"X14 M22X1.5 O016 O19.3X2.4 28 38.5 27 27
1FH4-12-22OG 1.3/16"X12 M22X1.5 O018 O19.3X2.4 30.7 39.5 30 27
1FH4-12-27OG 1.3/16"X12 M27X2 O018 O23.5X3.0 30.7 40 30 32
1FH4-16-33OG 1.7/16"X12 M33X2 O021 O29.5X3.0 33 48.5 36 41

We specialized in manufacture most of kinds of hydraulic fittings and other parts,you can go ahead to browse our website,ofcourse,you can contact us directly if interested.
