Ningbo Yongning Hydraulics Co.,Ltd.
|
45°JIS METRIC MALE/BSP MALE HYDRAULIC ADAPTER FITTING ELBOW
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Certificate:ISO 9001:2000
Standard or specification:As per drawings or samples
Delivery: Depend on order quantity
Product name:1KG4-OG 45°JIS METRIC MALE/BSP MALE O-RING HYDRAULIC ADAPTER FITTING ELBOW PIPE FITTING
Feature

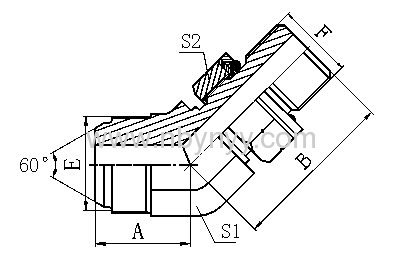

| THREAD | O O-RING | DIMENSIONS | |||||||||
| PART NO. | E | F | F | A | B | S1 | S2 | ||||
| 1KG4-14-04OG | M14X1.5 | G1/4"X19 | O111 | 25 | 27 | 14 | 19 | ||||
| 1KG4-16-06OG | M16X1.5 | G3/8"X19 | O113 | 26 | 30.5 | 16 | 22 | ||||
| 1KG4-18-06OG | M18X1.5 | G3/8"X19 | O113 | 28 | 31 | 19 | 22 | ||||
| 1KG4-22-08OG | M22X1.5 | G1/2"X14 | O115 | 31 | 36.2 | 22 | 27 | ||||
| 1KG4-24-08OG | M24X1.5 | G1/2"X14 | O115 | 33.5 | 36.2 | 24 | 27 | ||||
| 1KG4-24-12OG | M24X1.5 | G3/4"X14 | O119 | 34.5 | 42 | 27 | 32 | ||||
| 1KG4-30-12OG | M30X1.5 | G3/4"X14 | O119 | 39 | 44 | 30 | 32 | ||||
| 1KG4-33-16OG | M33X1.5 | G1"X11 | O217 | 43.5 | 44 | 33 | 41 | ||||
| Note: F end is connected with DIN 3852 port. |
