45°ELBOW BULKHEAD HYDRAULIC ADAPTER ELBOW PIPE ADAPTORS FITTINGS COUPLING from China manufacturer

45°ELBOW BULKHEAD HYDRAULIC ADAPTER ELBOW PIPE ADAPTORS FITTINGS COUPLING

Payment Terms:	T/T,L/C,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 6F4

Packing: Carton , Pallet

Technics: Forged

Material: Carbon Steel

Brand Name: YN

Certificate: ISO 9001:2000

Surface treatment: Cr+3, Cr+6 yellow zinc, col...

Means of Transport: Ocean,Air,

Delivery Date: By Order Quantity

Type: Elbow

Connection: Male

Function: Convey Fluid

Materials: Iron ,carbon steel ,stainle...

Standard or specification: As per drawings or samples

Materials:Iron ,carbon steel ,stainless steel, others specific metals
Technology: Forged
Payment: T/T,L/C

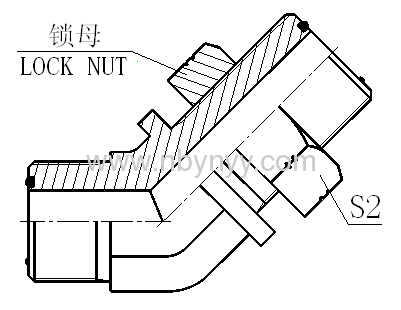

Product name:6F4 45° ELBOW ORFS MALE O-RING BULKHEAD HYDRAULIC ADAPTER ELBOW PIPE ADAPTORS FITTINGS COUPLING

Feature

	THREAD		O O-RING		DIMENSIONS
PART NO.	E	F	E	F	A	B	S1	S2
6F4-04	9/16"X18	9/16"X18	O011	O011	18.5	42.4	14	22
6F4-06	11/16"X16	11/16"X16	O012	O012	20.5	48.5	19	27
6F4-08	13/16"X16	13/16"X16	O014	O014	24	51	22	30
6F4-10	1"X14	1"X14	O016	O016	28	56.6	27	36
6F4-12	1.3/16"X12	1.3/16"X12	O018	O018	30.7	60.7	30	38
6F4-16	1.7/16"X12	1.7/16"X12	O021	O021	33	65.2	36	46

Note: In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no.,for example 6F4-16LN, The lock nut no. is 8F.

We specialized in manufacture most of kinds of hydraulic fittings and other parts,you can go ahead to browse our website,ofcourse,you can contact us directly if interested.
