ORFS MALE NPT MALE HYDRAULIC ADAPTER FITTING ELBOW PIPE
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Certificate:ISO 9001:2000
Technology: Forged
Payment: T/T,L/C
Product name:1FN ORFS MALE O-RING / NPT MALE HYDRAULIC ADAPTER FITTING ELBOW PIPE FITTING
Feature

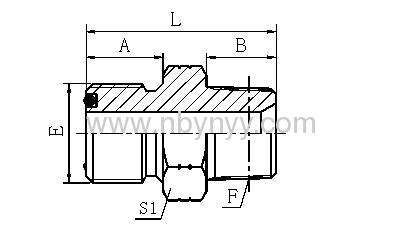

| THREAD | O O-RING | DIMENSIONS | ||||||||
| PART NO. | E | F | E | A | B | L | S1 | |||
| 1FN-04-02 | 9/16"X18 | Z1/8"X27 | O011 | 9.8 | 10.5 | 26.5 | 17 | |||
| 1FN-04 | 9/16"X18 | Z1/4"X18 | O011 | 9.8 | 15 | 30.5 | 17 | |||
| 1FN-04-06 | 9/16"X18 | Z3/8"X18 | O011 | 9.8 | 16 | 30.5 | 19 | |||
| 1FN-06-04 | 11/16"X16 | Z1/4"X18 | O012 | 11.2 | 15 | 32 | 19 | |||
| 1FN-06 | 11/16"X16 | Z3/8"X18 | O012 | 11.2 | 16 | 33.5 | 19 | |||
| 1FN-06-08 | 11/16"X16 | Z1/2"X14 | O012 | 11.2 | 19.5 | 39 | 24 | |||
| 1FN-08-04 | 13/16"X16 | Z1/4"X18 | O014 | 12.8 | 15 | 36 | 22 | |||
| 1FN-08-06 | 13/16"X16 | Z3/8"X18 | O014 | 12.8 | 16 | 36.5 | 22 | |||
| 1FN-08 | 13/16"X16 | Z1/2"X14 | O014 | 12.8 | 19.5 | 40 | 24 | |||
| 1FN-08-12 | 13/16"X16 | Z3/4"X14 | O014 | 12.8 | 19.5 | 42.5 | 30 | |||
| 1FN-10-08 | 1"X14 | Z1/2"X14 | O016 | 15.5 | 19.5 | 45 | 27 | |||
| 1FN-10-12 | 1"X14 | Z3/4"X14 | O016 | 15.5 | 19.5 | 45 | 30 | |||
| 1FN-12-08 | 1.3/16"X12 | Z1/2"X14 | O018 | 17 | 19.5 | 46.5 | 32 | |||
| 1FN-12 | 1.3/16"X12 | Z3/4"X14 | O018 | 17 | 19.5 | 47 | 32 | |||
| 1FN-12-16 | 1.3/16"X12 | Z1"X11.5 | O018 | 17 | 25.5 | 53.5 | 36 | |||
| 1FN-16-12 | 1.7/16"X12 | Z3/4"X14 | O021 | 17.5 | 19.5 | 48 | 38 | |||
| 1FN-16 | 1.7/16"X12 | Z1"X11.5 | O021 | 17.5 | 25.5 | 53.5 | 38 | |||
| 1FN-16-20 | 1.7/16"X12 | Z1.1/4"X11.5 | O021 | 17.5 | 26.5 | 57 | 46 | |||
| 1FN-20-16 | 1.11/16"X12 | Z1"X11.5 | O025 | 17.5 | 25.5 | 56 | 46 | |||
| 1FN-20 | 1.11/16"X12 | Z1.1/4"X11.5 | O025 | 17.5 | 26.5 | 56.5 | 46 | |||
