FLANGE HYDRAULIC ADAPTER FITTING ELBOW PIPE FITTING

Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 1JFS
Packing: Carton , Pallet
Technics: Forged
Function: Convey Fluid
Materials: Iron ,carbon steel ,stainle...
Standard or specification: As per drawings or samples
Means of Transport: Ocean,Air
Delivery Date: By Order Quantity
Brand Name: YN
Certificate: ISO 9001:2000
Surface treatment: Cr+3, Cr+6 yellow zinc, col...

Payment: T/T,L/C
Market: Mid-High quality market
Price: With competitive price

1JFS JIC MALE 74° CONE / S-SERIES FLANGE ISO 6162-2HYDRAULIC ADAPTER FITTING ELBOW PIPE FITTING
Product name:1JFS JIC MALE 74° CONE / S-SERIES FLANGE ISO 6162-2 HYDRAULIC ADAPTER FITTING ELBOW PIPE FITTING

Feature

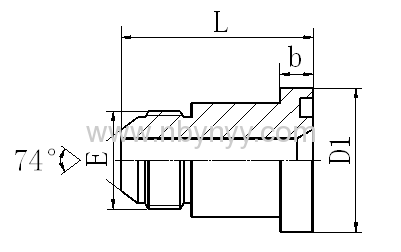

THREAD ODIMENSIONS
PART NO.E FLANGE SIZE O RING bD1 L
1JFS-083/4"X16 1/2" O210 7.7531.7 47.5
1JFS-10-087/8"X14 1/2" O210 7.7531.7 50
1JFS-10-127/8"X14 3/4" O214 8.7641.3 55
1JFS-121.1/16"X12 3/4" O214 8.7641.3 56.7
1JFS-12-161.1/16"X12 1" O219 9.5347.6 61.5
1JFS-16-121.5/16"X12 3/4" O214 8.7641.3 57.8
1JFS-161.5/16"X12 1" O219 9.5347.6 62.8
1JFS-16-201.5/16"X12 1.1/4" O222 10.2954 67.7
1JFS-20-161.5/8"X12 1" O219 9.5347.6 64
1JFS-201.5/8"X12 1.1/4" O222 10.2954 68.9
1JFS-20-241.5/8"X12 1.1/2" O225 12.5763.5 73.5
1JFS-24-201.7/8"X12 1.1/4" O222 10.2954 72
1JFS-241.7/8"X12 1.1/2" O225 12.5763.5 76.7
Note: Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
