BULKHEAD HYDRAULIC ADAPTORS PIPE FITTINGS COUPLING CONNECTER from China manufacturer

BULKHEAD HYDRAULIC ADAPTORS PIPE FITTINGS COUPLING CONNECTER

Payment Terms:	T/T,L/C,
Place of Origin:	Zhejiang, China (Mainland)


Add to Basket	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 6F

Packing: Carton , Pallet

Technics: Forged

Material: Carbon Steel

Brand Name: YN

Certificate: ISO 9001:2000

Surface treatment: Cr+3, Cr+6 yellow zinc, col...

Means of Transport: Ocean,Air,

Delivery Date: By Order Quantity

Type: Coupling

Connection: Male

Function: Convey Fluid

Materials: Iron ,carbon steel ,stainle...

Standard or specification: As per drawings or samples

Certificate:ISO 9001:2000
Payment: T/T,L/C
Place of orgin: Zhejiang

Product name:6F ORFS MALE O-RING BULKHEAD HYDRAULIC ADAPTORS PIPE FITTINGS COUPLING CONNECTER

Feature

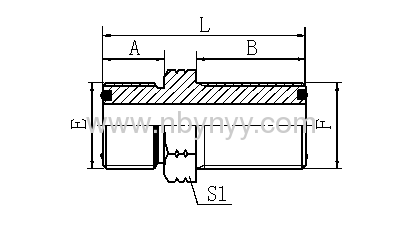

	THREAD		O O-RING		DIMENSIONS
PART NO.	E	F	E	F	A	B	L	S1	S2
6F-04	9/16"X18	9/16"X18	O011	O011	9.8	31.5	48.2	22	22
6F-06	11/16"X16	11/16"X16	O012	O012	11.2	34	53.2	27	27
6F-08	13/16"X16	13/16"X16	O014	O014	12.8	36.5	58.3	30	30
6F-10	1"X14	1"X14	O016	O016	15.5	40.6	66.6	36	36
6F-12	1.3/16"X12	1.3/16"X12	O018	O018	17	41.7	69.2	38	38
6F-16	1.7/16"X12	1.7/16"X12	O021	O021	17.5	42.2	70.2	46	46
6F-20	1.11/16"X12	1.11/16"X12	O025	O025	17.5	42.2	70.2	50	50
6F-24	2"X12	2"X12	O029	O029	17.5	42.2	70.2	60	60

Note: In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no.,for example 6F-16LN, The lock nut no. is 8F.

We specialized in manufacture most of kinds of hydraulic fittings and other parts,you can go ahead to browse our website,ofcourse,you can contact us directly if interested.
