90° ELBOW NPT MALE HYDRAULIC ADAPTER FITTING ELBOW PIPE
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Payment: T/T,L/C
Function:Convey Fluid
Delivery: Depend on order quantity
Product name:1CN9 90° ELBOW NPT MALE HYDRAULIC ADAPTER FITTING ELBOW PIPE FITTING
Feature

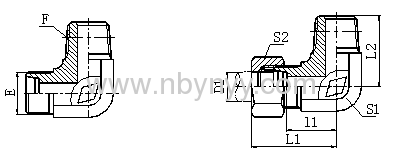

| THREAD | TUBE O.D. | DIMENSIONS | |||||||||||
| PART NO. | E | F | D1 | D2 | l1 | L1 | L2 | S1 | S2 | MPa | MPa | ||
| 1CN9-12-02 | M12X1.5 | Z1/8"X27 | 6 | 13 | 28 | 21 | 11 | 14 | 25 L | ||||
| 1CN9-12-04 | M12X1.5 | Z1/4"X18 | 6 | 15.5 | 30.5 | 25.5 | 14 | 14 | |||||
| 1CN9-14-04 | M14X1.5 | Z1/4"X18 | 8 | 15.5 | 30.5 | 25.5 | 14 | 17 | 25 | ||||
| 1CN9-16-06 | M16X1.5 | Z3/8"X18 | 10 | 17.5 | 32.5 | 29.5 | 16 | 19 | |||||
| 1CN9-18-04 | M18X1.5 | Z1/4"X18 | 12 | 19 | 34 | 28 | 19 | 22 | |||||
| 1CN9-18-06 | M18X1.5 | Z3/8"X18 | 12 | 19 | 34 | 31 | 19 | 22 | |||||
| 1CN9-18-08 | M18X1.5 | Z1/2"X14 | 12 | 21 | 36 | 36.7 | 22 | 22 | |||||
| 1CN9-22-06 | M22X1.5 | Z3/8"X18 | 15 | 22 | 37 | 32.5 | 22 | 27 | |||||
| 1CN9-22-08 | M22X1.5 | Z1/2"X14 | 15 | 22 | 37 | 36.7 | 22 | 27 | |||||
| 1CN9-26-08 | M26X1.5 | Z1/2"X14 | 18 | 25.5 | 42 | 40 | 27 | 32 | 16 L | ||||
| 1CN9-26-12 | M26X1.5 | Z3/4"X14 | 18 | 25.5 | 42 | 44 | 27 | 32 | |||||
| 1CN9-30-12 | M30X2 | Z3/4"X14 | 22 | 29.3 | 45.8 | 45 | 30 | 36 | |||||
| 1CN9-30-16 | M30X2 | Z1"X11.5 | 22 | 32 | 50 | 33 | 36 | ||||||
| 1CN9-36-16 | M36X2 | Z1"X11.5 | 28 | 33.3 | 49.8 | 51.5 | 36 | 41 | |||||
| 1CN9-45-20 | M45X2 | Z1.1/4"X11.5 | 35 | 39.2 | 60.7 | 63 | 48 | 50 | |||||
| 1CN9-52-24 | M52X2 | Z1.1/2"X11.5 | 42 | 44.8 | 67.8 | 65 | 55 | 60 | |||||
| 1DN9-14-04 | M14X1.5 | Z1/4"X18 | 6 | 17.5 | 32.5 | 25.5 | 14 | 17 | 40 S | ||||
| 1DN9-16-04 | M16X1.5 | Z1/4"X18 | 8 | 18.5 | 33.7 | 26.5 | 16 | 19 | |||||
| 1DN9-18-06 | M18X1.5 | Z3/8"X18 | 10 | 19.5 | 36 | 31 | 19 | 22 | |||||
| 1DN9-20-04 | M20X1.5 | Z1/4"X18 | 12 | 19.5 | 36 | 28 | 19 | 24 | |||||
| Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.,for example 1CN9-30-12RN. |
