BSP BANJO TUBE HYDRAULIC ADAPTER FITTING ELBOW PIPE FITTING
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Delivery: Depend on order quantity
Certificate:ISO 9001:2000
Application area: mine,construciton,tunnel,paper-making,injection,and so on.

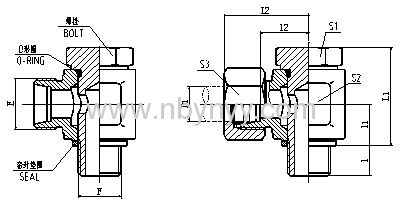

Product name:1CI-B/1DI-B BSP BANJO TUBE HYDRAULIC ADAPTER FITTING ELBOW PIPE FITTING
Feature
| THREAD | D1 | DIMENSIONS | O | ||||||||||||||
| PART NO. | E | F | TUBE O.D. | l | l1 | L1 | MPa | l2 | L2 | S1 | S2 | S3 | BOLT | O-RING | SEAL | MPa | |
| 1CI-12-B02 | M12X1.5 | G1/8" | 6 | 8 | 11 | 25.5 | 12 | 27 | 14 | 17 | 14 | 720B-02I | O08.1X1.6 | ZHD-10 | |||
| 1CI-14-B04 | M14X1.5 | G1/4" | 8 | 12 | 14.5 | 33 | 15.5 | 30 | 19 | 24 | 17 | 720B-04I | O11.3X2.4 | ZHD-14 | |||
| 1CI-16-B04 | M16X1.5 | G1/4" | 10 | 12 | 14.5 | 33 | 16.5 | 31 | 19 | 24 | 19 | 720B-04I | O11.3X2.4 | ZHD-14 | 31.5 | ||
| 1CI-18-B06 | M18X1.5 | G3/8" | 12 | 12 | 16.5 | 38 | 19 | 34.5 | 24 | 27 | 22 | 720B-06I | O15.3X2.4 | ZHD-18 | |||
| 1CI-22-B08 | M22X1.5 | G1/2" | 15 | 14 | 21.5 | 49 | 22.5 | 38 | 27 | 32 | 27 | 720B-08I | O19.3X2.4 | ZHD-22 | L | ||
| 1CI-26-B08 | M26X1.5 | G1/2" | 18 | 14 | 21.5 | 49 | 22 | 38 | 27 | 32 | 32 | 720B-08I | O19.3X2.4 | ZHD-22 | |||
| 1CI-30-B12 | M30X2 | G3/4" | 22 | 16 | 24 | 56 | 28.5 | 45 | 36 | 41 | 36 | 720B-12I | O23.5X3.0 | ZHD-27 | |||
| 1CI-36-B16 | M36X2 | G1" | 28 | 18 | 30.5 | 71 | 33 | 50 | 41 | 50 | 41 | 720B-16I | O29.5X3.0 | ZHD-33 | 16 | ||
| 1CI-45-B20 | M45X2 | G1.1/4" | 35 | 20 | 35.5 | 82 | 37 | 59 | 50 | 60 | 50 | 720B-20I | O38.5X3.0 | ZHD-42 | |||
| 1CI-52-B24 | M52X2 | G1.1/2" | 42 | 22 | 40.5 | 93 | 41.5 | 64 | 55 | 70 | 60 | 720B-24I | O44.5X3.0 | ZHD-48 | L | ||
| 1DI-14-B04 | M14X1.5 | G1/4" | 6 | 12 | 14.5 | 33 | 17.5 | 32 | 19 | 24 | 17 | 720B-04I | O11.3X2.4 | ZHD-14 | |||
| 1DI-16-B04 | M16X1.5 | G1/4" | 8 | 12 | 14.5 | 33 | 17.5 | 32 | 19 | 24 | 19 | 720B-04I | O11.3X2.4 | ZHD-14 | |||
| 1DI-18-B06 | M18X1.5 | G3/8" | 10 | 12 | 16.5 | 38 | 21 | 38 | 24 | 30 | 22 | 720B-06I | O15.3X2.4 | ZHD-18 | 63 | ||
| 1DI-20-B06 | M20X1.5 | G3/8" | 12 | 12 | 16.5 | 38 | 21 | 38 | 24 | 30 | 24 | 720B-06I | O15.3X2.4 | ZHD-18 | |||
| 1DI-22-B08 | M22X1.5 | G1/2" | 14 | 14 | 21.5 | 49 | 23.5 | 41 | 27 | 32 | 27 | 720B-08I | O19.3X2.4 | ZHD-22 | S | ||
| 1DI-24-B08 | M24X1.5 | G1/2" | 16 | 14 | 21.5 | 49 | 23 | 41 | 27 | 32 | 30 | 720B-08I | O19.3X2.4 | ZHD-22 | |||
| 1DI-30-B12 | M30X2 | G3/4" | 20 | 16 | 24 | 56 | 27.5 | 49 | 36 | 41 | 36 | 720B-12I | O23.5X3.0 | ZHD-27 | |||
| 1DI-36-B16 | M36X2 | G1" | 25 | 18 | 30.5 | 71 | 32.5 | 57 | 41 | 50 | 46 | 720B-16I | O29.5X3.0 | ZHD-33 | 40 | ||
| 1DI-42-B20 | M42X2 | G1.1/4" | 30 | 20 | 35.5 | 82 | 38 | 65 | 50 | 60 | 50 | 720B-20I | O38.5X3.0 | ZHD-42 | |||
| 1DI-52-B24 | M52X2 | G1.1/2" | 38 | 22 | 40.5 | 93 | 42.5 | 73 | 55 | 70 | 60 | 720B-24I | O44.5X3.0 | ZHD-48 | S | ||
| Note:1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.,for example 1DI-36-B16RN. |
