90° BSP FEMALE 60° CONE HYDRAULIC HOSE FITTING PIPE FITTING from China manufacturer

90° BSP FEMALE 60° CONE HYDRAULIC HOSE FITTING PIPE FITTING

Payment Terms:	T/T,L/C,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 22692

Packing: Carton , Pallet

Shape: Reducing

Type: Coupling

Function: Convey Fluid

Materials: Iron ,carbon steel ,stainle...

Standard or specification: As per drawings or samples

Means of Transport: Ocean,Air,

Delivery Date: By Order Quantity

Technics: Forged

Brand Name: YN

Certificate: ISO 9001:2000

Surface treatment: Cr+3, Cr+6 yellow zinc, col...

Function:Convey Fluid
Surface treatment:Cr+3, Cr+6 yellow zinc, color zinc plated or white zinc plated
Brand: YN

Product name:22692 90° BSP FEMALE 60° CONE HYDRAULIC HOSE FITTING PIPE FITTING COUPLING

Feature

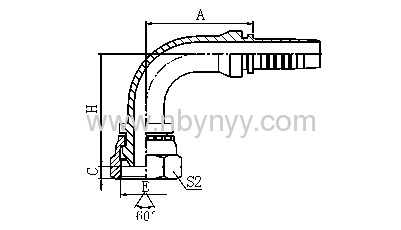

	E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	H	S2
22692-04-04	G1/4"X19	6	04	31	36.5	19
22692-06-06	G3/8"X19	10	06	36.8	43	22
22692-08-08	G1/2"X14	12	08	42	51	27
22692-10-10	G5/8"X14	16	10	57	56	30
22692-12-12	G3/4"X14	20	12	66.8	66.1	32

If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).

We specialized in manufacture most of kinds of hydraulic fittings and other parts,you can go ahead to browse our website,ofcourse,you can contact us directly if interested.
