22611D BSP FEMALE 60° CONE DOUBLE HEXAGON TUBE FITTING from China manufacturer

22611D BSP FEMALE 60° CONE DOUBLE HEXAGON TUBE FITTING

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 22611D

Packing: Carton , Pallet

Shape: Reducing

Type: Coupling

Function: Convey Fluid

Materials: Iron ,carbon steel ,stainle...

Standard or specification: As per drawings or samples

Means of Transport: Ocean,Air

Delivery Date: By Order Quantity

Technics: Forged

Brand Name: YN

Certificate: ISO 9001:2000

Surface treatment: Cr+3, Cr+6 yellow zinc, col...

Market: Mid-High quality market
Function:Convey Fluid
Technology: Forged

Product name:22611D BSP FEMALE 60° CONE DOUBLE HEXAGON HYDRAULIC TUBE FITTING HOSE FITTING PIPE FITTING

Feature

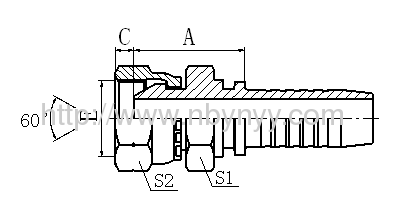

	E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1	S2
22611D-04-04	G1/4"X19	6	04	23.5	5.5	19	19
22611D-06-06	G3/8"X19	10	06	26.5	6.3	22	22
22611D-08-08	G1/2"X14	12	08	31	7.5	27	27
22611D-10-08	G5/8"X14	12	08	32	9.5	30	30
22611D-12-08	G3/4"X14	12	08	33	10.9	32	32
22611D-12-12	G3/4"X14	20	12	34	10.9	32	32
22611D-16-16	G1"X11	25	16	35.5	11.7	41	41
22611D-20-20	G1.1/4"X11	32	20	43.5	11	50	50

If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).

We specialized in manufacture most of kinds of hydraulic fittings and other parts,you can go ahead to browse our website,ofcourse,you can contact us directly if interested.
