Ningbo Yongning Hydraulics Co.,Ltd.
|
90° SAE FLANGE HYDRAULIC HOSE FITTING PIPE FITTING COUPLING
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Price: With competitive price
Application area: mine,construciton,tunnel,paper-making,injection,and so on.
Payment: T/T,L/C
Product name:87393 90° SAE FLANGE 3000 PSI HYDRAULIC HOSE FITTING PIPE FITTING COUPLING
Feature

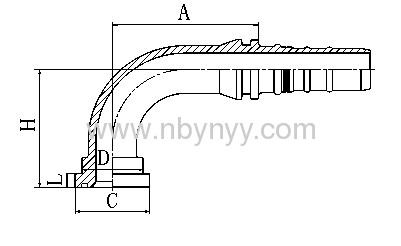

| HOSE BORE | DIMENSIONS | |||||||||
| PART NO. | FLANGE SIZE | DN | DASH | A | C | D | H | L | ||
| 87393-12-12 | 3/4" | 20 | 12 | 75 | 38.1 | 31.7 | 62 | 7 | ||
| 87393-16-12 | 1" | 20 | 12 | 75 | 44.4 | 38 | 62 | 8 | ||
| 87393-16-16 | 1" | 25 | 16 | 88.9 | 44.4 | 38 | 67.5 | 8 | ||
| 87393-20-16 | 1.1/4" | 25 | 16 | 88.9 | 50.8 | 43 | 67.5 | 8 | ||
| 87393-20-20 | 1.1/4" | 32 | 20 | 105.8 | 50.8 | 43 | 78.5 | 8 | ||
| 87393-24-20 | 1.1/2" | 32 | 20 | 105.8 | 60.3 | 50 | 80.5 | 8 | ||
| 87393-24-24 | 1.1/2" | 40 | 24 | 123.2 | 60.3 | 50 | 94 | 8 | ||
| 87393-32-24 | 2" | 40 | 24 | 123.2 | 71.4 | 62 | 94 | 9.53 | ||
| 87393-32-32 | 2" | 50 | 32 | 150.3 | 71.4 | 62 | 114.3 | 9.53 | ||
